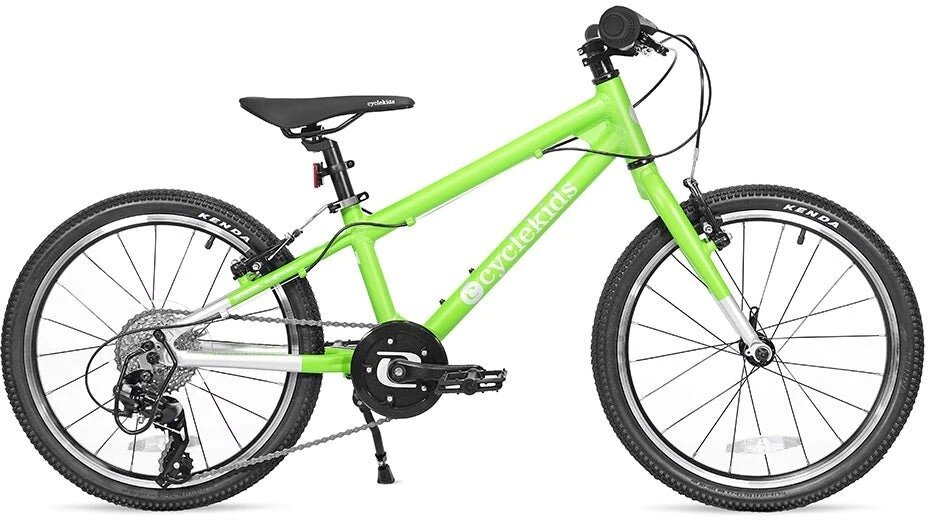

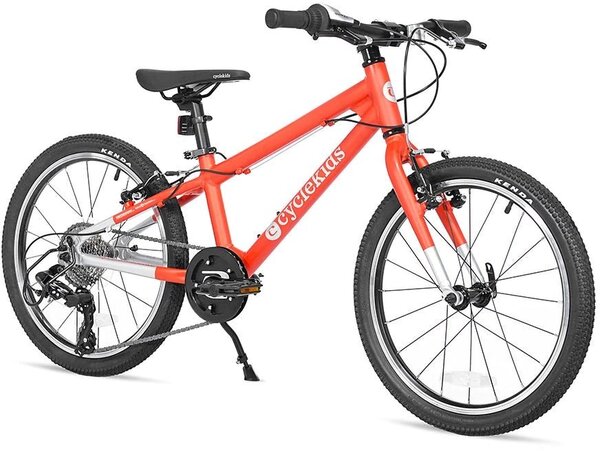

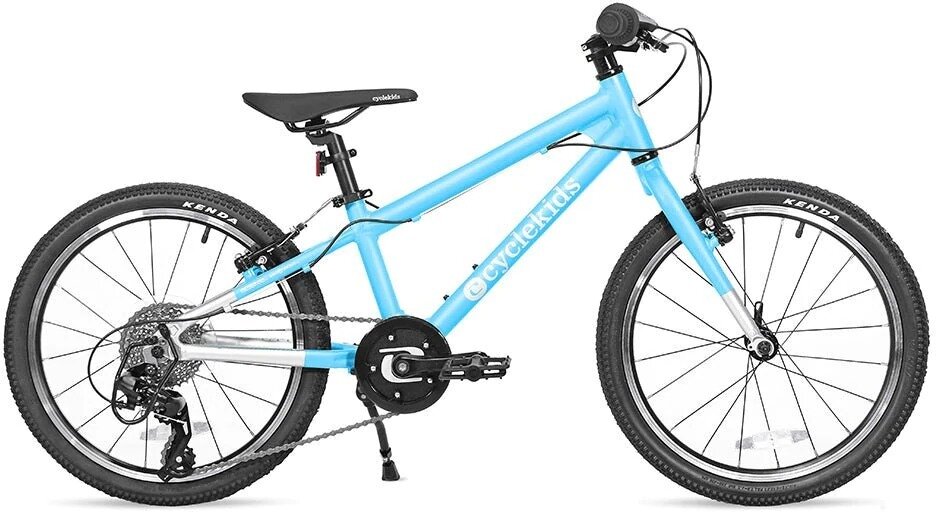

Cycle Kids Bikes 20" Cycle Kids Bike
This item is currently not available.
Details
The 20" CYCLE Kids bike is the perfect introduction to gears. Weighing only 19.47 pounds and featuring 8 Speed Shimano Twist Shifters with clean, easy to read displays for effortless gear selection. Comes equipped with a lightweight aluminum frame and fork, double wall 20 hole alloy rims and smooth rolling Kenda Small Block Tires. Make their transition to gears an easy one.
| 20" Cycle Kids Bike | Measurement |
|---|---|
| A WHEEL / TIRE SIZE | 20" |
| B SEAT TUBE LENGTH | 10" |
| C SEAT TUBE ANGLE | 72° |
| D HEAD TUBE LENGTH | 4.3" |
| E HEAD TUBE ANGLE | 68° |
| F EFFECTIVE TOP TUBE LENGTH | 17.7" |
| G WHEELBASE | 32.48" |
| H STANDOVER | 20.4" |
| I HANDLEBAR HEIGHT | 30.15" |
| J BOTTOM BRACKET HEIGHT | 9.35" |
| Age | Wheel Size | Height | Inseam |
|---|---|---|---|
| 1.5 to 3.5 | 12" | 31" to 40" | 12" to 16" |
| 4 to 6 | 16" | 41" to 47" | 14" to 17" |
| 6 to 9 | 20" | 45" to 51" | 16" to 21" |
| 7 to 11 | 24" | 49" to 57" | 20" to 23" |
| 10 to 14 | 26" | 55" to 65" | 22" to 26" |
| 14+ | 27.5" | 61" to 73" | 25" to 28" |
Specs
| Frame | ULTRALITE 6061 ALUMINUM |
|---|---|
| Fork | ULTRALITE 6061 ALUMINUM |
| Rims | MACHINED WALL ULTRALITE ALUMINUM |
| Hubs |
FRONT: ALUMINUM W. SEALED BEARINGS REAR: ULTRALITE ALUMINUM |
| Spokes | STAINLESS STEEL |
| Tires | KENDA SMALL BLOCK 20 X 1.5 |
| Crankset | 32T ALUMINUM W. WATERPROOF BOLTS & NARROW Q-FACTOR |
| Shifters | SHIMANO TWIST SC R547-8R |
| Rear Derailleur | SHIMANO RD TX800 SHORT CAGE |
| Cassette/Freewheel | 11-32T |
| Chain | KMC 8-SPEED |
| Brakes | TEKTRO LINEAR PULL BRAKES |
| Brake Levers | TEKTRO W. ALUMINUM LEVERS |
| Tape/Grips | MTB EXTRA GRIP, SPECIAL SIZING |
| Headset | ULTRALITE ALUMINUM |
| Seatpost | 27.2MM X 250MM W. QUICK RELEASE |
| Saddle | AGE SPECIFIC W. COMFORT FOAM |
| Pedals | 9/16TH RESIN PEDAL |
* Subject to change without notice.
